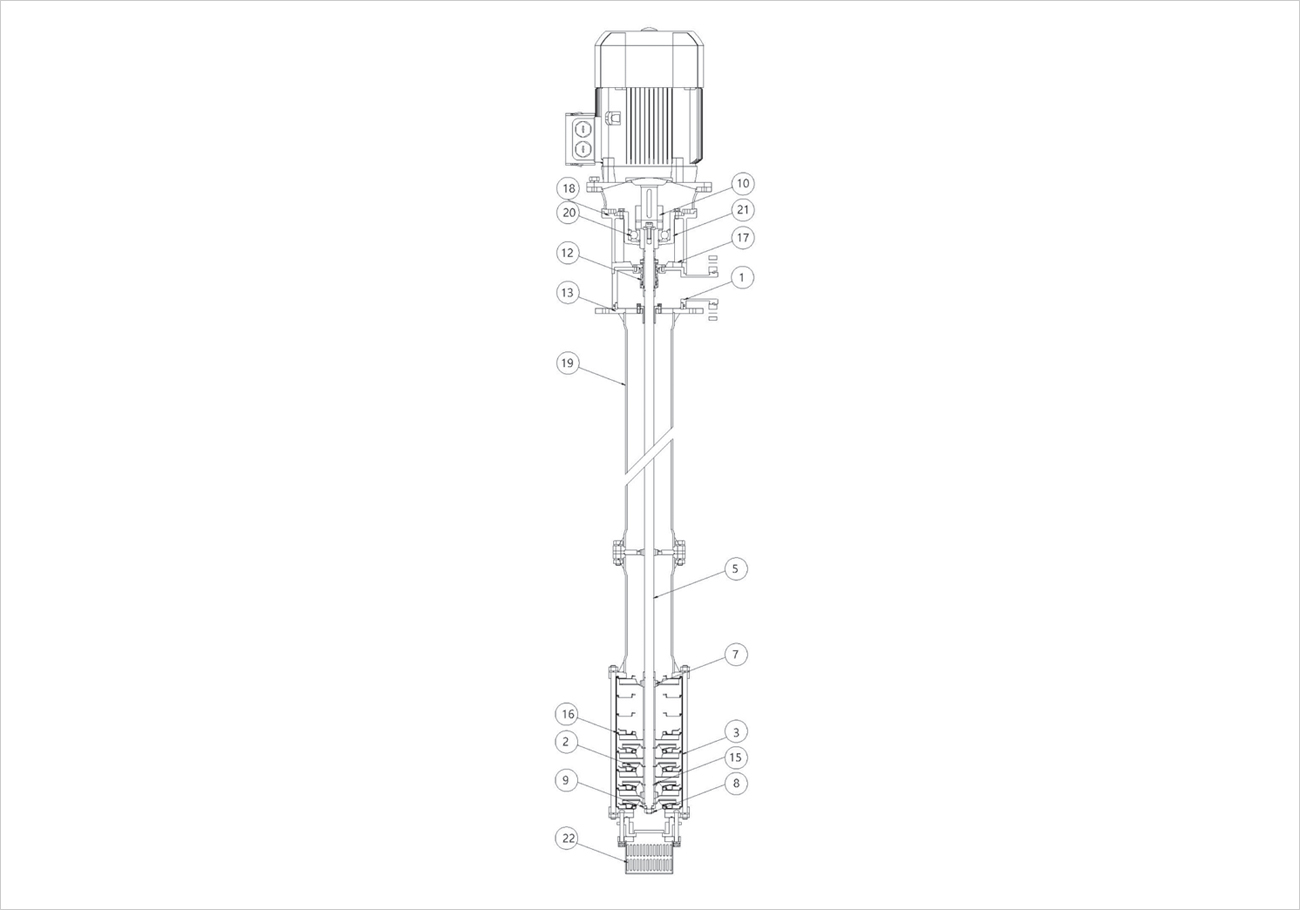

| No |
Name
of parts |
Materials |
| KS |
JIS |
| 1 |
Discharge
Casing |
STS304
|
SUS304
|
| 2 |
Impeller |
STS304 |
SUS304 |
| 3 |
Stage
Casing |
STS304 |
SUS304 |
| 5 |
Pump
Shaft |
STS420J2 |
SUS420J2 |
| 6 |
Diffuser |
STS304 |
SUS304 |
| 7 |
Stage
Bearing |
CERAMIC |
CERAMIC |
| 8 |
Impeller
Set Bolt |
STS304 |
SUS304 |
| 9 |
Impeller
Set Washer |
STS304 |
SUS304 |
| 10 |
Coupling |
GC200 |
FC200 |
| 12 |
Mechanical
Seal |
SIC+CARBON |
SIC+CARBON
|
| 13 |
Base |
STS304 |
SUS304 |
| 15 |
Stage
Sleeve |
STS304 |
SUS304 |
| 16 |
O-Ring |
EPDM/VITON |
EPDM/VITON |
| 17 |
Air
Vent |
STS304 |
SUS304 |
| 18 |
Adapter |
GC200 |
FC200 |
| 19 |
Colum
Pipe |
STS304 |
SUS304 |
| 20 |
Bearing |
STB2 |
STB2 |
| 21 |
Bearing
Housing |
GC200 |
FC200 |
| 22 |
Strainer |
STS304 |
SUS304 |
|
